Yanmar Energy Systems Co., Ltd., a subsidiary of Yanmar Holdings, has commercialised the “HP35FA1Z”, a compact and multi-unit controllable hydrogen fuel cell power generation system, and will begin accepting orders in Japan from September 2, 2024.
With the increased focus on renewable energy to achieve a decarbonised society, government and municipalities in Japan are advancing efforts to promote the use of hydrogen as a fuel, including the enactment of the Hydrogen Society Promotion Bill in May 2024. In September 2023, Yanmar ES opened the YANMAR CLEAN ENERGY SITE in Okayama Prefecture to develop and demonstrate hydrogen-related technologies, which are expected to be lead the way in decarbonising society.
The HP35FA1Z hydrogen fuel cell power generation system with a power output of 35kW does not emit greenhouse gases such as carbon dioxide (CO2) or air pollutants like nitrogen oxides (NOx) during operation, ensuring a clean power supply. The system’s compact design includes all necessary operating equipment, simplifying installation and achieving one of the smallest footprints in its power output class. It supports the integrated control of up to 16 units, allowing for easy adjustment of operating units and output control based on power demand and available hydrogen supply, as well as straightforward expansion to meet decarbonisation goals.
Product Overview

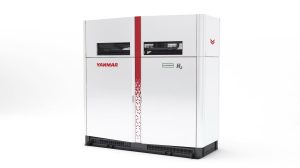

Product Name: Hydrogen Fuel Cell Power Generation System HP35FA1Z
Order Start Date: September 2, 2024 (Japan)
Type – HP35FA1Z
Power Generation Efficiency – 51.2%
Power Output – 35kW during grid connection, 35kVA during standalone operation
Type of Fuel Cell – Proton Exchange Membrane Fuel Cell (PEFC)
Fuel – Hydrogen, purity ≥99.97%
Control Units – Up to 16 units, During Grid-Connected Operation
Size – Width 2,340mm x Depth 900mm x Height 2,290mm
Weight – 1,650kg
Main features
- Zero emissions of greenhouse gases and air pollutants during power generation.
- Simplified on-site installation due to the inclusion of related equipment such as grid-interconnected power conversion devices.
- Compact design achieving one of the smallest installation footprints in its power output class.
- Capable of integrated control of up to 16 units, adjustable based on power demand and available hydrogen supply.
- Autonomous power output (blackout specification) enabling power supply during outages.
